When selecting a hydraulic cylinder for an industrial application, one of the most common questions engineers and maintenance teams face is whether to use an NFPA tie rod cylinder or a welded cylinder.
While both styles are designed to deliver reliable hydraulic force, their construction, serviceability, and ideal applications differ significantly. Choosing the right cylinder can impact equipment performance, maintenance costs, and long-term reliability.
Here’s a closer look at the key differences between NFPA tie rod cylinders and welded cylinders, and how to determine which option is best for your operation.
What Are NFPA Tie Rod Cylinders?
NFPA tie rod cylinders are hydraulic cylinders built to standardized dimensional specifications established by the National Fluid Power Association (NFPA).
These cylinders use threaded steel tie rods to hold the cylinder barrel and end caps together. Their standardized dimensions allow for easier interchangeability across manufacturers and applications.
NFPA tie rod cylinders are commonly used in:
- manufacturing equipment
- industrial automation
- material handling
- packaging machinery
- automotive production
One major advantage of NFPA cylinders is serviceability. Because the design can be disassembled, maintenance teams can often replace seals and components without replacing the entire cylinder.
What Are Welded Cylinders?
Welded cylinders use a different construction style than NFPA tie rod cylinders. Instead of external tie rods securing the assembly, the barrel is directly welded to the end caps, creating a more compact and rugged cylinder design.
These cylinders are commonly used in both hydraulic and pneumatic applications where durability, space savings, and resistance to harsh operating conditions are critical.
Welded cylinders are frequently found in:
- mobile equipment
- construction machinery
- agricultural equipment
- waste and recycling systems
- heavy-duty off-road applications
Because welded cylinders typically have a smaller overall footprint, they are often preferred for applications with limited mounting space or equipment designs requiring a more compact cylinder package.
Their rugged construction also provides excellent durability in environments exposed to:
- dirt
- debris
- vibration
- weather
- heavy impact
As a result, welded cylinders are well-suited for demanding applications where reliability and structural strength are essential. Industrial equipment tends to appreciate this. Humans usually wait until something leaks in spectacular fashion before appreciating it too.

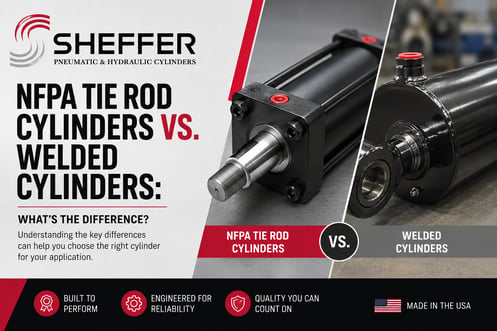

Key Differences Between NFPA Tie Rod Cylinders and Welded Cylinders
1. Standardization
NFPA tie rod cylinders are manufactured to industry-standard dimensions, making replacement and interchangeability easier.
Welded cylinders are often application-specific and may vary between manufacturers.
If equipment standardization is important across facilities, an NFPA cylinder may offer a significant advantage.
You can explore additional hydraulic cylinder solutions available from Sheffer Corporation for a variety of industrial applications.
2. Maintenance and Repair
One of the biggest benefits of tie rod cylinders is ease of maintenance.
Because the cylinder can be disassembled, repairs are typically faster and more cost-effective. Seals, rods, and internal components can often be serviced individually.
Welded cylinders are generally more difficult to repair due to their fully welded construction.
For operations focused on minimizing downtime and extending cylinder life, repairability can play a major role in cylinder selection. Humans do love waiting until something catastrophically fails before budgeting for maintenance, but some facilities try a different approach.
3. Size and Design
Welded cylinders are typically more compact than NFPA tie rod cylinders.
This makes them ideal for applications where:
- space is limited
- equipment design requires tighter mounting dimensions
- external damage resistance is critical
NFPA tie rod cylinders are usually larger overall but provide greater flexibility for industrial system integration.
4. Application Environment
NFPA tie rod cylinders are commonly used in controlled industrial environments where precision, serviceability, and standardization matter most.
Welded cylinders are often preferred in outdoor or rugged conditions involving:
- shock loads
- vibration
- debris exposure
- extreme environments
The application itself often determines the better fit more than simple pressure ratings.
Which Hydraulic Cylinder Is Right for Your Application?
The best choice depends on several factors:
- operating environment
- available space
- maintenance expectations
- pressure requirements
- equipment design
- service accessibility
In many industrial manufacturing environments, NFPA tie rod cylinders provide the ideal balance of performance, interchangeability, and long-term serviceability.
For compact mobile equipment or severe-duty applications, welded cylinders may offer advantages in durability and package size. Click here for our Ultimate Design Checklist.
Final Thoughts
Both NFPA tie rod cylinders and welded cylinders serve important roles in hydraulic systems. Understanding the strengths of each design can help improve equipment reliability, reduce downtime, and support long-term operational efficiency.
Selecting the right cylinder is not just about force output. It’s about matching the cylinder design to the realities of the application.
Physics tends to enforce that lesson eventually, usually
during the least convenient production shift possible.
